Previous Topic Back Forward Next Topic
Print Page Dr. Frank Dieterle

Ph. D. ThesisPh. D. Thesis 5. Results  Kinetic Measurements5. Results Kinetic Measurements 5.3. Makrolon  A Polymer for Time-resolved Measurements 5.3. Makrolon A Polymer for Time-resolved Measurements 5.3.4. Influence of the Carrier Gas5.3.4. Influence of the Carrier Gas
Home
News
About Me
Ph. D. Thesis
  Abstract
  Table of Contents
  1. Introduction
  2. Theory Fundamentals of the Multivariate Data Analysis
  3. Theory Quantification of the Refrigerants R22 and R134a: Part I
  4. Experiments, Setups and Data Sets
  5. Results Kinetic Measurements
    5.1. Static Sensor Measurements
    5.2. Time-resolved Sensor Measurements
    5.3. Makrolon A Polymer for Time-resolved Measurements
      5.3.1. General Properties of Makrolon
      5.3.2. Time-resolved Measurements
      5.3.3. Thickness of the Sensitive Layer
      5.3.4. Influence of the Carrier Gas
    5.4. Conclusions
  6. Results Multivariate Calibrations
  7. Results Genetic Algorithm Framework
  8. Results Growing Neural Network Framework
  9. Results All Data Sets
  10. Results Various Aspects of the Frameworks and Measurements
  11. Summary and Outlook
  12. References
  13. Acknowledgements
Publications
Research Tutorials
Links
Contact
Search
Site Map
Guestbook
Print this Page Print this Page

5.3.4.   Influence of the Carrier Gas

In section 5.3.1, it was shown that the Makrolon matrix expands when exposed to analyte for a long time. This effect can also be used for adapting the sensitive layer to a specific analytical problem by modifying the composition of the carrier gas. In figure 26, the kinetics of R134a is shown if pure air and air mixed with R22 is used as carrier gas. It is visible that even the quite low amount of adding 1% R22 to air as carrier gas significantly reduces the time needed for the desorption of R134a. In figure 27 the autoscaled signal of the R134a kinetics with pure air as carrier gas minus the autoscaled signal of the R134a kinetics in an air-R22 mixture is plotted. The positive difference in the plot demonstrates that the faster kinetics caused by the modified carrier gas plays a role for the desorption of highly concentrated R134a. Consequently, the addition of bigger analytes to air as carrier gas can be used to modify the desorption kinetics and to accelerate measurements. At the moment the accelerated kinetics of sorption and desorption can be best explained by the expansion of the micropores during the occupation of the pores by rather big molecules of the carrier gas and its additives (see also section 5.3.1). During the following exposure to analyte, the analyte molecules can sorb faster into the expanded micropores replacing the molecules of the carrier gas. Yet, further research on the exact mechanisms of the expansion of the polymer matrix and on the influence of different carrier gas mixtures has to be done. Up to now, it is only certain that the concentrations and the sizes of the molecules of the additives to the carrier gas play a role.

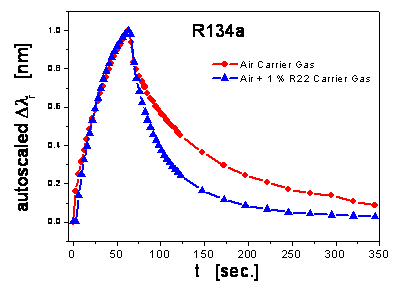

figure 26: Autoscaled signal of the sorption and desorption of R134a in pure air as carrier gas and in an air R22 mixture as carrier gas.

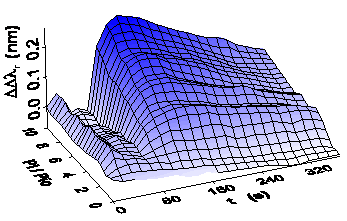

figure 27: The difference of the autoscaled signals of the sorption and desorption of R134a in pure air and in an air - R22 mixture is plotted versus the concentrations of R134a and the time (60 seconds of sorption and 290 seconds of desorption).

Page 66 © Dr. Frank Dieterle, 14.08.2006 Navigation
